How to Start an Upload

How to Leverage Peak Annotation Files to Jump Start a Data Submission

TraceBase accepts mass spectrometry data that has been corrected for the natural abundance of isotopomers.

Specifically, TraceBase supports the output from 3 popular tools for natural abundance correction:

Therefore, a typical workflow to put data on TraceBase could be:

  1. Select peaks from a set of .mzXML files using either of these peak-picking tools
  2. Correct for natural abundance using AccuCor or IsoCor
  3. Upload data to TraceBase to generate a submission template

TraceBase uses an Excel spreadsheet called a Study Doc to label and organize submission data.

The Upload Start page does not save your uploaded peak annotation files in TraceBase. Its only purpose is to create a Study Doc from scratch using your peak annotation files, so feel free to submit any combination of the files mentioned above as either a:

  • Microsoft Excel Spreadsheet
  • Corrected data sheet only in one of 2 plain text formats (e.g. using NotePad or TextEdit):
    • CSV (comma separated values)
    • TSV (tab separated values)

The default file name of a study doc generated by the Upload Start page is study.xlsx. It is suggested that you rename this file using the study name (without spaces), but any name is acceptable.

Ensure that each peak annotation file is annotated with the Mass Spec Run information using the fields next to each file.

How to Label Mass Spec Run Information

The Start page interface provides form elements to enter metadata about the MS Run associated with each peak annotation file. Each field has a drop-down, but any value can be entered.

  • MS Operator
  • Instrument
  • LC Protocol
  • Run Date

Since it is expected that multiple peak annotation files will have much of the same metadata, you can enter terms common to all the files you intend to drop. After dropping the files, you can enter the specific values relevant to each specific file.

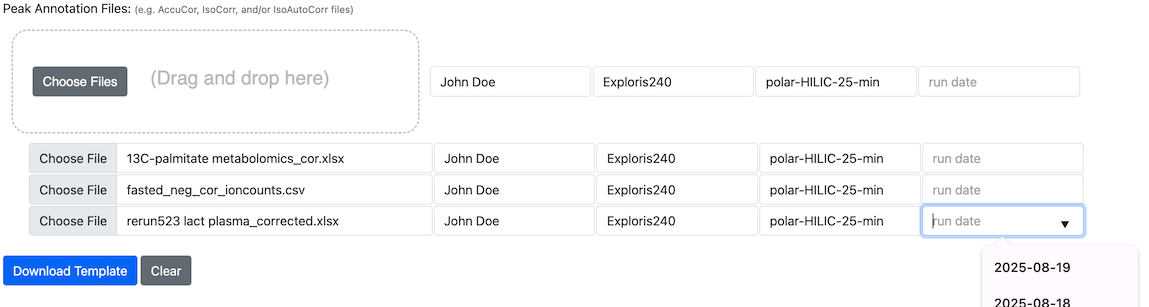

The fields next to the drop area will apply to every file dropped, but they must be filled in before you drop them, as the form fields next to the drop area are ignored when the form is submitted. Only the values next to each individually dropped file are submitted in the final form. You can edit those associated with each individual file using the form rows that appear below the drop area for each dropped file. For example:

peak annot drop example

In this example, the operator, instrument, and LC protocol were filled in before dropping and the date was left empty because each was run on a different date, to be filled in after dropping in the forms that appear below the drag and drop area.

The metadata entered about each Mass Spectrometry Run is distilled into unique rows and saved in the Sequences sheet in the Study Doc. There is no succinct ID/Name for each of these rows, so an Excel formula is used to generate one that is available in drop-downs in 2 other sheets:

  • The Peak Annotation Files sheet, which denotes a "default" associated run associated with a peak annotation file
  • The Peak Annotation Details sheet, whose values can override the default set in the Peak Annotation Files sheet.

All of these values will be automatically populated when you supply the metadata on the Upload page's Start tab.

Read on for details about each tracked piece of MS Run metadata.

Run Date

Date that the sequence was run on the mass spec instrument in YYYY-MM-DD format. The drop-down on the Upload Start page provides selections for the past 2 weeks, but any date can be entered.

Instrument

The instrument (model) that was used for the MS Run.

Note that there is no distinction made between 2 instruments of the same model.

Current options:

  • HILIC
  • QE
  • QE2
  • QEPlus
  • QEHF
  • Exploris240
  • Exploris480
  • unknown

A new instrument model can be entered and the select list will automatically include the new model in the future after the study is loaded.

Operator

The name of the researcher who prepared samples for MS and ran them on the instrument. A drop-down is provided on the Upload Start page to mitigate name variants.

LC Protocol

Name of the Liquid Chromatography LS Protocol used.

  • polar-HILIC-25-min
  • polar-reversed-phase-ion-pairing-25-min
  • polar-reversed-phase-25-min
  • lipid-reversed-phase-25-min
  • SCFA-reversed-phase-22-min
  • unknown

Any novel LS Protocol can be entered and will appear in the LC Protocols sheet in the Study Doc, but names should have no spaces (only dashes), start with the LC Method, end with -min, have a run length greater than 0, and appear in the following format:

MYNAME-0-min

Example: lipid-reversed-phase-25-min

This method involves the analysis of lipids using reversed-phase chromatography on C18 columns, coupled with high resolution mass spectrometry. It is mainly used for the analysis of lipids.

If you need to edit the protocol in the Study Doc, do not edit the Name column. Edit the other columns in the sheet and copy the formula from the first unpopulated row in the Name column to paste on the edited row.

Polarity and Scan Range

Note that polarity and scan range are not recorded in the Study Doc. This information is only ever automatically extracted from the mzXML files, if supplied with your final submission.

Notes

The Study Doc's Sequences sheet has a Notes column if you want to add any extra information about the run that is not captured in the other columns. You can add that information after generating the Study Doc template.

How to Handle Errors and Warnings encountered on the Start Page

The Upload Start page is the only tool in the submission process that checks for conflicts between your peak annotation files. If any errors or warnings are encountered on that page, they must be fixed in the downloaded Study Doc. The Validate page will not bring them up again (unless they refer specifically to the otherwise hidden Peak Group Conflicts sheet).

If an error or warning encountered on the Start page is not enough to know what to do to fix it, it may help to look up a more detailed explanation of what the exception means, what can cause it, or how to fix it. Every current custom TraceBase exception is provided in the Errors and Warnings Reference. You can use it to search for the exception name to see what extra guidance it provides.
